Rack PDU PXE-1771V

End of Life Notice: This model is currently not available.

Power Configuration

img-standard_ul 208V, 3Φ Wye, 5.8kVA, 16A

Features

Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

View all sensors.

Cascading

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

3-digit LED user-selectable display (voltage, current, or active power : per line)

Specifications

Input

Input Plug

NEMA L21-20P (4P5W)

Nominal Voltage

208V

Maximum Input Current

20A

Rated Input Current

16A

Power Capacity

5.8kVA

Cord Length

Output

Nominal Voltage

208V

Receptacles (Output Connections)

(36) IEC320 C13

(6) IEC320 C19

(3) NEMA 5-20R

Overload Protection

Physical

Dimensions (WxDxH)

2.1in x 1.7in x 60.6in; 52mm x 43mm x 1539mm

Unit Weight

5 kg

Shipping Weight

7.2 kg

Shipping Dimensions

280mm x 115mm x 1815mm

Mounting

Tool-less Button Mount

Environmental

Operating Temperature/Environment

50 C

Operating Relative Humidity

85%

Operating Elevation

0-6000ft

Conformance

Regulatory Approvals

Warranty

Standard 2 years manufacturer warranty

Tender Text/Bid Submittal Text

Monitored rack power distribution unit (0U [vertical],; 5.8kVA,; 45 outlets). INPUT: 208v (3-phase WYE),; 20a - NEMA L21-20P plug (4P5W); OUTPUT: 36@ C13,; 6@ C19,; 3@ 5-20R outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW,; kVA,; V,; A,; Power Factor] - per inlet; 3-digit LED user-selectable display (voltage,; current,; or active power : per line); Onboard embedded processor with minimum 400MHz clock speed,; 16MB NOR Flash,; and 64MB SDRAM; Remote network monitoring via HTML,; JSON-RPC,; SSH,; Telnet,; MODBUS/TCP,; and SNMPv3. Environmental monitoring [temp/humidity] capable Ã± up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP,; DHCP/PXE,; SSH(CLI). Max Dimensions 52mm x 43mm x 1539mm (2.1in x 1.7in x 60.6in). Max Weight 5 kg. Maximum ambient temperature 50C at full load.

Vendor: Raritan; Part Number: PXE-1771V

Looking to Buy?

Want to get a quote or send this product to a colleague.

Get Started

Looking to Buy?

Want to get a quote or send this product to a colleague.

Get Started

Support and Updates

PXE Support and Updates

Solutions

Tools

PDU Product Selector

Rack Power Distribution Units (PDUs)

Rack PDU PXE-1771V

End of Life Notice: This model is currently not available.

Power Configuration

Features

Specifications

Input

Output

Physical

Environmental

Conformance

Tender Text/Bid Submittal Text

Looking to Buy?

Support and Updates

Technical Documents

Electrical (One Line) Diagram

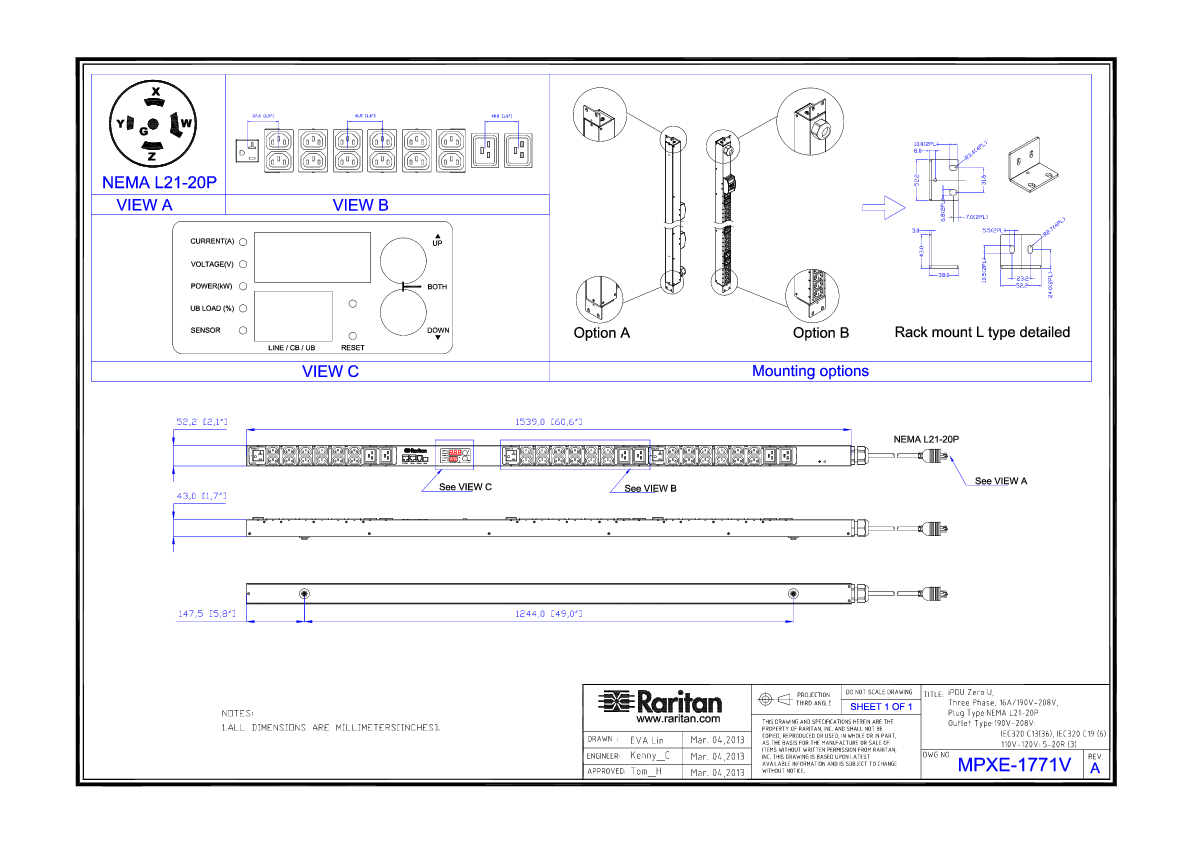

Mechanical Diagram
