Home » PDU Product Selector » PX3-4166R
Rack Power Distribution Units (PDUs)
Power Configuration
120V, 1Φ, 1.9kVA, 16A
Features
Securelock
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
No
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
No
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information).
Specifications
Input
Input Plug
NEMA L5-20P (2P3W)
Nominal Voltage
120V
Maximum Input Current
20A
Rated Input Current
16A
Power Capacity
1.9kVA
Cord Length
3m
Output
Nominal Voltage
120V
Receptacles (Output Connections)
(8) IEC320 C13
Overload Protection
NA
Physical

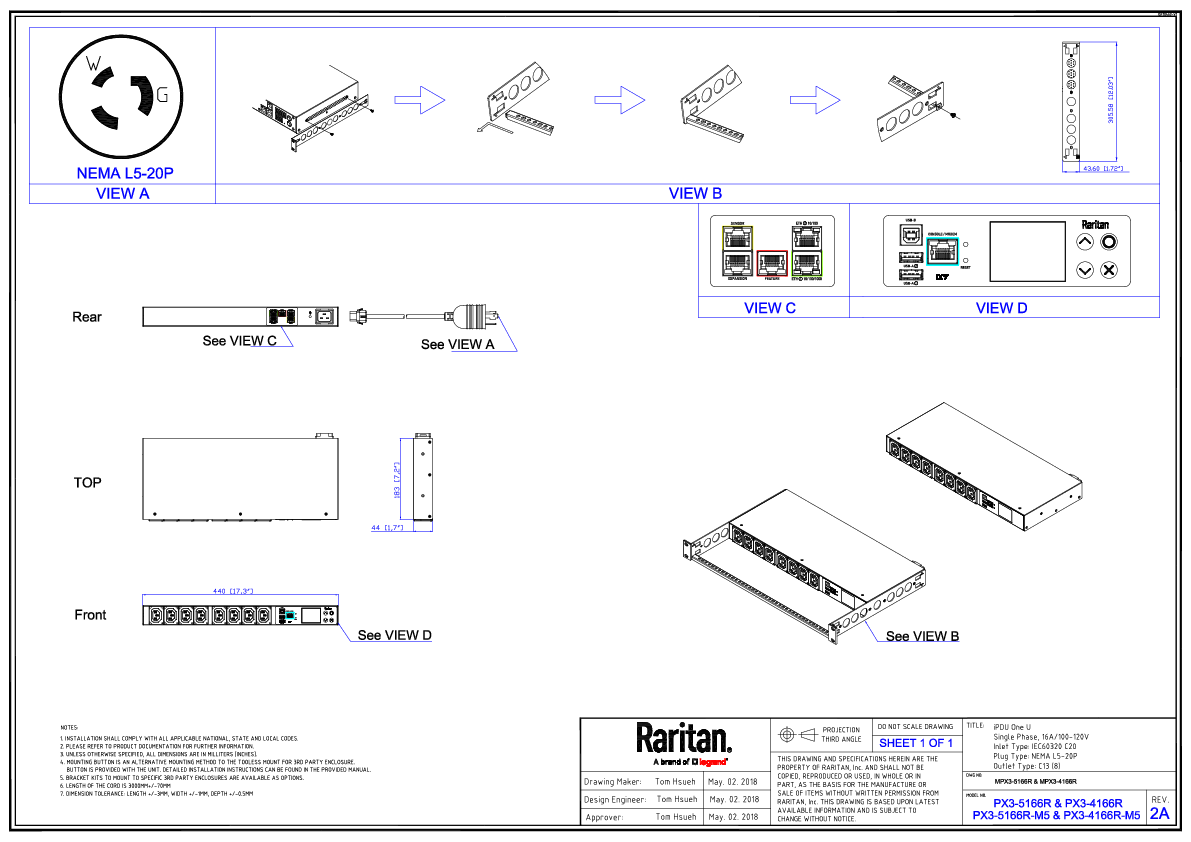

Dimensions (WxDxH)
17.3in x 7.2in x 1.7in; 440mm x 183mm x 44mm
Unit Weight
TBD
Shipping Weight
TBD
Shipping Dimensions
Mounting
RACK-KIT-DPX-1U
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
Tender Text/Bid Submittal Text
Vendor: Raritan; Part Number: PX3-4166R
