Home » PDU Product Selector » PX3-1765-E2N1V2
Rack Power Distribution Units (PDUs)
Power Configuration
208V, 3Φ Delta, 17.3kVA, 48A
Features
IEC Locking
Removable Controller
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
No
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
Yes
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line or per breaker); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation
Specifications
Input
Input Plug
IEC 60309 3P+E 9h 60A (3P4W)
Nominal Voltage
208V
Maximum Input Current
60A
Rated Input Current
48A
Power Capacity
17.3kVA
Cord Length
3m
Output
Nominal Voltage
208V
Receptacles (Output Connections)
(48) IEC320 C13 Locking
Overload Protection
(6) LUXHA66-20
Physical

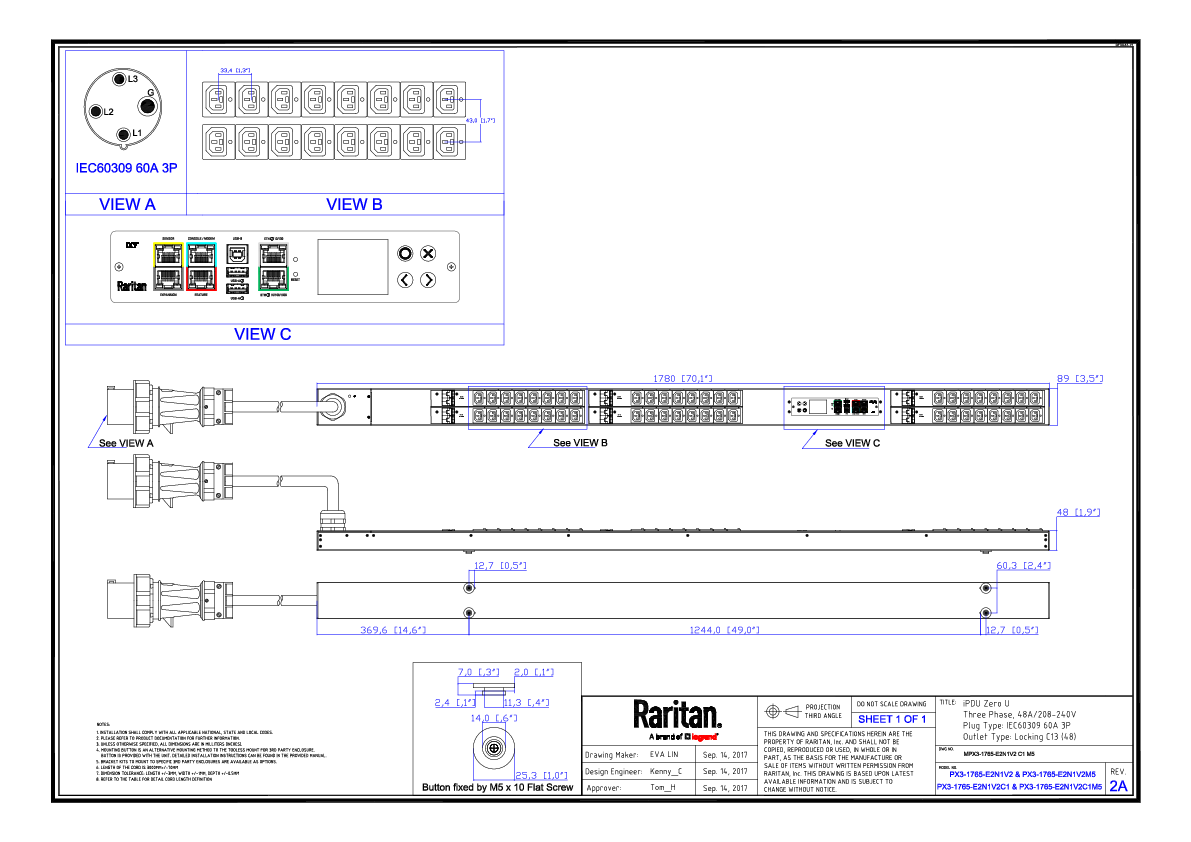

Dimensions (WxDxH)
3.5in x 1.9in x 70.1in; 89mm x 48mm x 1780mm
Unit Weight
TBD
Shipping Weight
TBD
Shipping Dimensions
465mm x 170mm x 1945mm
Mounting
Tool-less Button Mount
Environmental
Operating Temperature/Environment
60 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
UL
Warranty
Standard 2 years manufacturer warranty
Tender Text/Bid Submittal Text
Vendor: Raritan; Part Number: PX3-1765-E2N1V2
