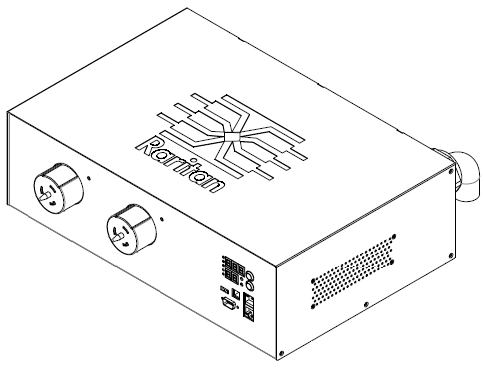

Rack PDU PX2-5938R

End of Life Notice: This model is currently not available.

PX2-5938R

Power Configuration


img-standard_ul 208V, 3Φ Delta, 14.4kVA, 40A

Features

Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

Yes

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Yes

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

View all sensors.

Cascading

Yes, Max 16 PDUs can be daisy chained using a USB connection. Note: Firmware version 3.3.10 or above is required.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

3-digit LED user-selectable display (voltage, current, or active power : per line, per breaker or per receptacle / outlet). Auto-flip orientation

Specifications

Input

Input Plug

CS8365C (3P4W)

Nominal Voltage

208V

Maximum Input Current

50A

Rated Input Current

40A

Power Capacity

14.4kVA

Cord Length

3m


Output

Nominal Voltage

208V

Receptacles (Output Connections)

(2) Clipsal CS8369

Overload Protection

(2) LELBX111-50


Physical

Dimensions (WxDxH)

17.3in x 11.5in x 5.2in; 440mm x 293mm x 132mm

Unit Weight

15.5 kg

Shipping Weight

19.3 kg

Shipping Dimensions

550mm x 265mm x 610mm

Mounting

RACK-KIT-PX-3U


Environmental

Operating Temperature/Environment

60 C

Operating Relative Humidity

85%

Operating Elevation

0-6000ft


Conformance

Regulatory Approvals

UL

Warranty

Standard 2 years manufacturer warranty


Tender Text/Bid Submittal Text


Vendor: Raritan; Part Number: PX2-5938R

Electrical (One Line) Diagram

Download PDF

img-pdu_control_panel

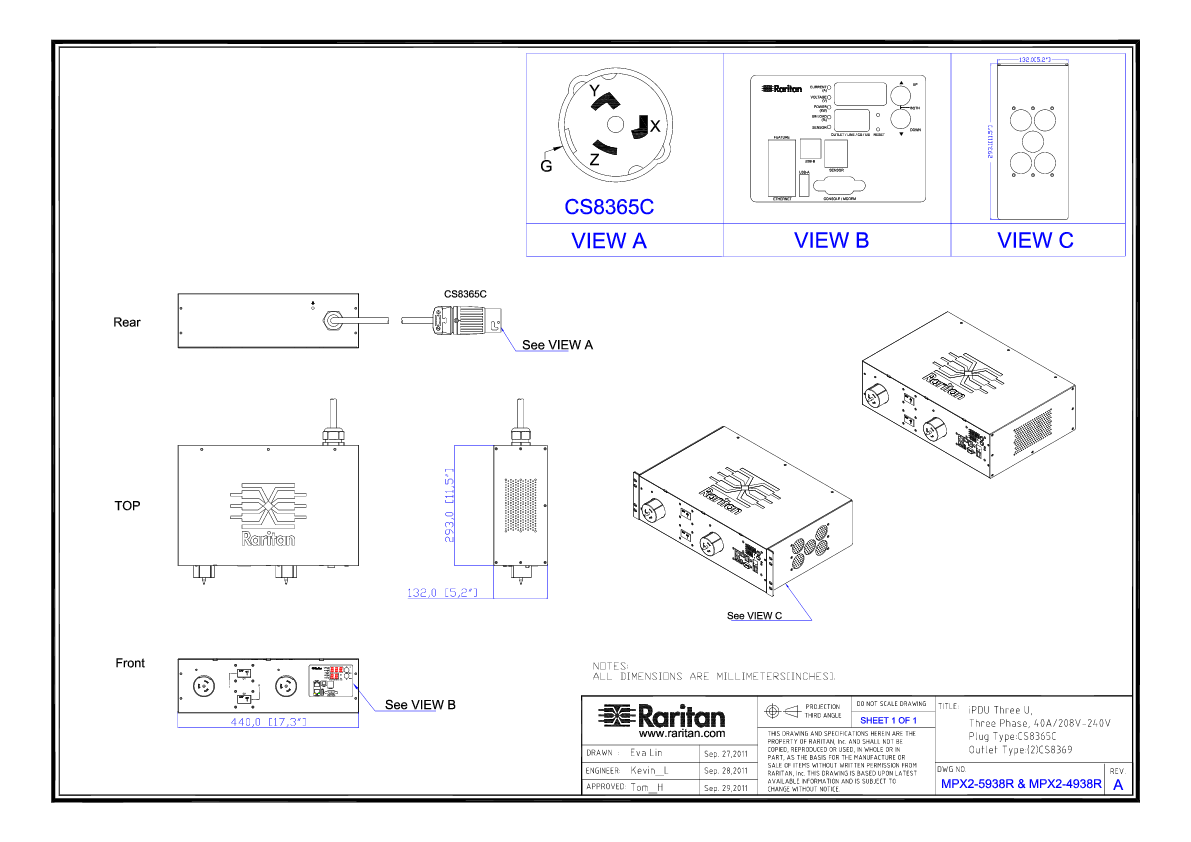

Mechanical Diagram

Download PDF

img-pdu_mechanical_diagram
