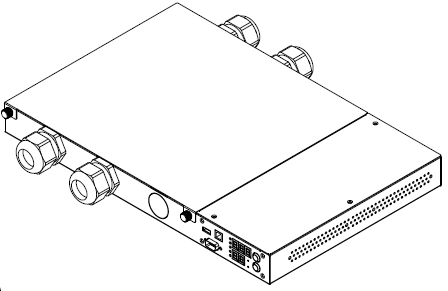

Rack PDU PX2-3273I2-A7A7D1

End of Life Notice: This model is currently not available.

Power Configuration

img-standard_ul 415V, 3Φ Wye, 0kVA, 24A

Features

Energy Metering

Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor

Metering Accuracy

ISO/IEC 62053-21 1%

Remote Outlet Switching

Metering per input line

Yes for all models

Metering per Branch Circuit Breaker

Environmental Sensor Ready

Yes

Compatible Sensors

Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.

View all sensors.

Cascading

Yes, Max 16 PDUs can be daisy chained using a USB connection. Note: Firmware version 3.3.10 or above is required.

Networking

(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).

Onboard Display

3-digit LED user-selectable display (voltage, current, or active power : per line). Auto-flip orientation.

Specifications

Input

Input Plug

(2) IEC 60309 3P+N+E 6h 32A (4P5W)

Nominal Voltage

415V

Maximum Input Current

32A

Rated Input Current

24A

Power Capacity

0kVA

Cord Length

(2) 3m

Output

Nominal Voltage

415V

Receptacles (Output Connections)

(2) IEC309 3P+N+E 6h 32A

Overload Protection

Physical

Dimensions (WxDxH)

11.3in x 17.3in x 1.7in; 287mm x 440mm x 44mm

Unit Weight

10.5 kg

Shipping Weight

13.5 kg

Shipping Dimensions

545mm x 245mm x 555mm

Mounting

RACK-KIT-PX-1U-P

Environmental

Operating Temperature/Environment

60 C

Operating Relative Humidity

85%

Operating Elevation

0-6000ft

Conformance

Regulatory Approvals

Warranty

Standard 2 years manufacturer warranty

Tender Text/Bid Submittal Text

Monitored rack power distribution unit (1U [horizontal], 0kVA, 2 outlets). INPUT: 415v (3-phase WYE), 32a - IEC 60309 3P+N+E 6h 32A plug (4P5W); OUTPUT: 2@ 3P+N+E 6h 32A outlets; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet; 3-digit LED user-selectable display (voltage, current, or active power : per line). Local display of alarms and configuration information(name, ratings, IP/Networking); Onboard embedded processor with minimum 400MHz clock speed, 16MB NOR Flash, and 64MB SDRAM; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable Ã± up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Max Dimensions 287mm x 440mm x 44mm (11.3in x 17.3in x 1.7in). Max Weight 10.5 kg. Maximum ambient temperature 60C at full load.

Vendor: Raritan; Part Number: PX2-3273I2-A7A7D1
