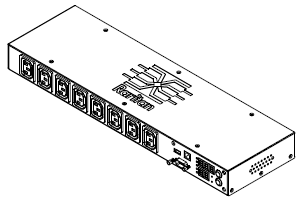

Rack PDU PX2-1190CR
End of Life Notice: This model is currently not available.
Power Configuration
230V, 1Φ, 3.7kVA, 16A
Features
Securelock
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
No
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
No
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB connection. Note: Firmware version 3.3.10 or above is required.
Networking
(10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n).
Onboard Display
3-digit LED user-selectable display (voltage, current, or active power : per line). Auto-flip orientation.
Specifications
Input
Input Plug
IEC 60320 C20 (2P3W)
Nominal Voltage
230V
Maximum Input Current
16A
Rated Input Current
16A
Power Capacity
3.7kVA
Cord Length
3m
Output
Nominal Voltage
230V
Receptacles (Output Connections)
(8) IEC320 C13
Overload Protection
NA
Physical
Dimensions (WxDxH)
17.3in x 5.2in x 1.7in; 440mm x 133mm x 44mm
Unit Weight
2.2 kg
Shipping Weight
4.8 kg
Shipping Dimensions
269mm x 315mm x 560mm
Mounting
RACK-KIT-PX2-1K-1U
Environmental
Operating Temperature/Environment
50 C
Operating Relative Humidity
85%
Operating Elevation
0-6000ft
Conformance
Regulatory Approvals
CE
Warranty
Standard 2 years manufacturer warranty
Tender Text/Bid Submittal Text
Vendor: Raritan; Part Number: PX2-1190CR
